automatic Sliding door

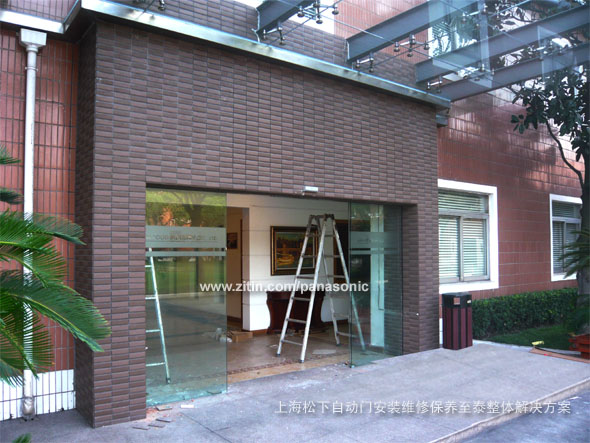

Panasonic New HengDi automatic Sliding door

♦ Single door bearing weight 75kg, double opening 75kg*2, which can meet the requirements of most entrances and exits
♦ Rich functions, such as normally open, normally closed, half open and other mode settings. It can be connected to the backup battery, electric lock, sensor and access control.

♦ The door machine has passed the 500,000 life test and the operation was trouble free.


Product features
Silent, safe, easy to install, stable and reliable, rich functions
◇The single door has a bearing capacity of 90kg and double opening of 90kg*2, which can meet most import and export requirements.
◇It has rich functions and can be set in normally open, normally closed, half open mode. It can be connected to the backup battery and connected to various electric locks, sensors and access control.
◇The door machine has passed 500,000 life tests without any operation failure.

Product type
◇60W DC brushless motor power: powerful power, high transmission efficiency, large torque and long service life
◇DCU can be upgraded to further improve the product safety and versatility. It can be connected with functional parts such as electromagnetic lock, access control and remote control, achieving the design of automatic door operation parameters and states;
◇New sensor with the installation height up to 3 m, and the sensitivity knob can be adjusted for different detection ranges

Product parameters

Rail length

Surface:

2.1m

Surface:

2.1m×2,4.2m×1


Type

Single open

Double open

Door weight

Below75kg

Below75kg× 2 pieces

Door width

DW=600mm~1250mm

600mm~1250mm

Installation method

Surface mounted

Opening speed

14~37cm/s (adjustable)

14~32cm/s (adjustable)

Closing speed

9~35cm/s (adjustable)

9~30cm/s (adjustable)

Motor

DC24V 60W DC brushless

Opening time

0~9 s (adjustable)

Manual opening force during power failure

21.6N

27.4N

Ambient temperature

-20~+50℃

Voltage

AC220V±10% 50~60HZ
