automatic Sliding door


Panasonic automatic Sliding door, Profile door


♦ Tailored
♦ Easy to install

♦ Beautiful appearance


Product features

Tailored, easy to install
◇The door body is tailored according to the size at the site. The movable leaf, fixed leaf and vertical frame combination are firmly connected with screws. No cutting or welding is required for the on-site installation. The installation difficulty and workload are reduced substantially.
◇Specific glass strips without gluing are provided to improve the installation convenience.


System matching solution
◇High-strength aluminum alloy door body, equipped with Panasonic automatic door engine unit, user-friendly design.
◇The door body is matched with the door machine system, and with the help of functional parts, can realize various additional functions such as door locking, remote control, access control, etc., providing customers with a total solution.


Uniform style and beautiful appearance

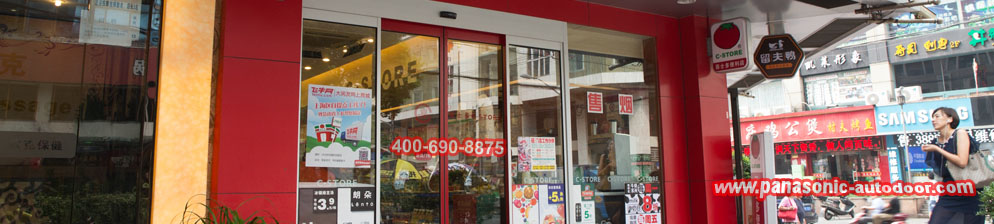

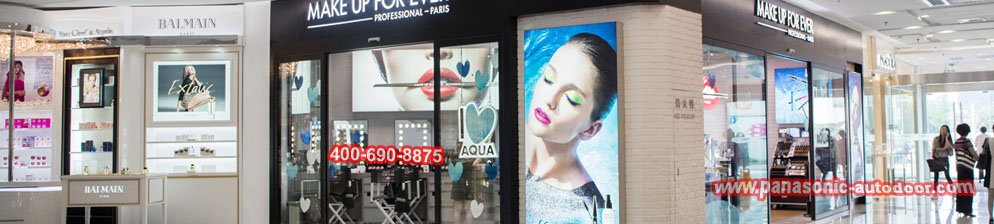

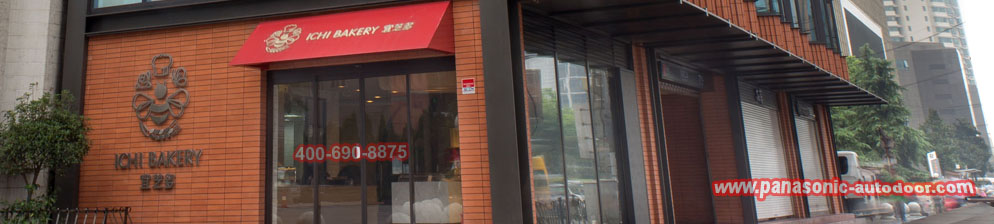

◇ It is suitable for the unified decoration of chain stores, banks, convenient hotels, etc., establishing a unified store image.

◇Beautiful and premium appearance, the door color is optional, which matches the main style of the building.

◇The door body is designed with dustproof insulation and high quality anti-wear strips for good sealing performance.



Product composition


Door part:
◇ It consists of door frame, rail, cover, door leaf and check.
◇ The door body is made of high-strength aluminum alloy, and is robust and durable, without deformation under load. (Figure 1)
◇The surface of the door has undergone various treatments such as oxidation, fluorocarbon coating, wire drawing, mirror polishing and sandblasting, and the color is optional, such as black, silver, red, wood grain, etc. The product is standard with anodized silver white and black.
◇ The frame has the "Panasonic" logo, which is located in the lower right corner of the front cover and the corresponding position of the door beam. (Figure 2)


Door machine system:
◇ Light-duty - single leaf bearing capacity 75KG
◇ Heavy-duty - single leaf bearing capacity 120KG

Product parameters




Type

Legend

30# profile
Door size (m)

50# profile
Door size (m)

70# profile
Door size (m)

Basic type
(double open)


Size

W≤4.2
H≤2.6

Size

W≤4.2
H≤2.6

Size

W≤4.2
H≤2.6

Size

4.2<W≤5
H≤2.6

Size

4.2<W≤5
2.6<H≤2.8

Size

4.2<W≤5
2.6<H≤3

Basic type
(Left single open)



W≤2.3
H≤2.6

Size

W≤2.3
H≤2.6

Size

W≤2.3
H≤2.6

Size

W≤3
H≤2.8

Size

W≤3
H≤3

Basic type
(right single open)



W≤2.3
H≤2.6

Size

W≤2.3
H≤2.6

Size

W≤2.3
H≤2.6

Size

W≤3
H≤2.8

Size

W≤3
H≤3

Basic type + varnishing + side door


Size

W≤6.7
H≤3.6

Size

W≤6.7
H≤3.6

Size

W≤6.7
H≤3.6

Size

6.7<W≤7.5
H≤3.6

Size

6.7<W≤7.5
3.6<H≤3.8

Size

6.7<W≤7.5
3.6<H≤4

Basic type + varnishing


Size

W≤4.2
H≤3.6

Size

W≤4.2
H≤3.6

Size

W≤4.2
H≤3.6

Size

4.2<W≤5
H≤3.6

Size

4.2<W≤5
3.6<H≤3.8

Size

4.2<W≤5
3.6<H≤4

Basic type + side door



Size

W≤6.7
H≤2.6

Size

W≤6.7
H≤2.6

Size

W≤6.7
H≤2.6

Size

6.7<W≤7.5
H≤2.6

Size

6.7<W≤7.5
2.6<H≤2.8

Size

6.7<W≤7.5
2.6<H≤3
