Swing Door Operator

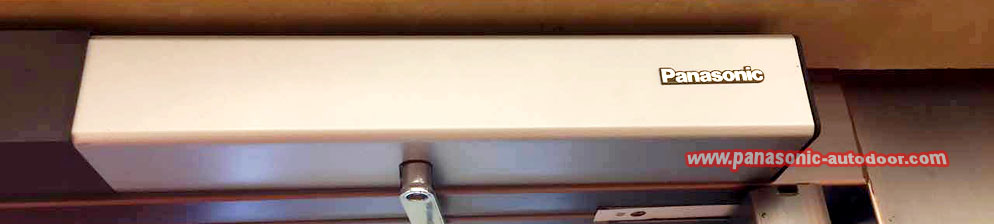

Panasonic Swing Door Operator

Jiedi flush door

♦ High safety, easy to install, stable and reliable, silent design
♦ Equipped with new technology motor, improved motor structure, optimized deceleration device design, and further reduced noise
♦ The controller program is optimized to match the new motor design for smooth operation
♦ The newly developed sensor is used, safe and reliable
♦ Compact connection between reducer and commutator, less noise and smaller volume
♦ The motor has overheat and overload protection functions and is safer
♦ Double-open linkage function

Product features

Opening/closing door speed adjustment function
The speed of opening/closing door can be adjusted through the potentiometer.

Door open hold time adjustment function
The door open hold time can be adjusted through the potentiometer, 2~30 s.

Remote control function
Through the remote control, you can open the door and set the operating mode: two-way, one-way, normally opened, normally closed.

Anti-pinch protection function

◇When an obstacle is encountered during closing, the door leaf will be opened in the opposite direction, will remain normally opened when blocked for three times, and will be restored after receiving the next opening signal.
◇When an obstacle is encountered during opening, the door leaf will continue to open after stopping for 5 s, and will be closed when blocked for three times.
◇If equipped with a safety sensor, the door will stop before it collides with the obstacle and wait for the obstacle to leave before continuing to open.

Electromagnetic lock function
◇The magnetic lock can be powered directly, and the customer does not need an additional power supply.
◇It can detect the status of the lock in the whole process.
◇Double door double lock or double door single lock can be set (the main door has a pressure tap).

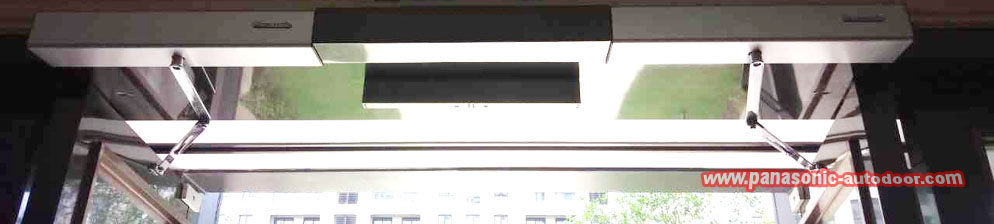

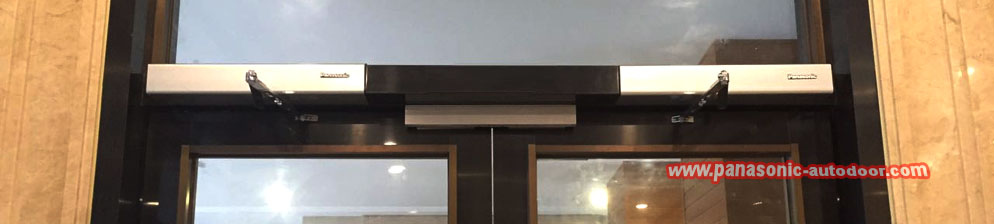

Double-door synchronization function
◇The two door machines communicate through the connecting line, which can realize the linkage of opening/closing door, the linkage upon blocking and the parameter synchronization (it is only necessary to set the main door parameters).
◇The two door leaves can be set to be closed simultaneously or closed one by one, so as to correspond to the door leaf without the pressure tap and the door leaf with the pressure tap.

Multi-parameter setting function
Multiple parameters can be set by Ruidi manipulator to meet different needs, such as ratchet function, door opening delay, fire action, etc. It is only necessary to set the main door when the two doors are linked.

Product parameters


Engine unit number


Door leaf weight

Scissor arm up to 100kg, rail arm 80kg

Door leaf width

Max. 1000mm

Opening speed

3~6 s adjustable

Closing speed

4~7 s adjustable

Door opening time

2~30 s adjustable

Opening angle

Max. 115°

Supply voltage

AC220V ±20% 50Hz

Maximum power


Standby power


Overall dimension


Ambient temperature


Operating noise
